As glass processing techniques become more varied, a wide range of materials can now be combined with glass. Low temperature ultra clear EVA interlayer is designed to meet the requirements of composite materials that are sensitive to high temperatures when paired with glass, such as acrylic (PMMA), silk fabric, heat-sensitive color-changing materials, wicker, and sensitive paper, INNOLA EVA Film has developed a low temperature (minimum 70℃) EVA film.

• Product Overview: Innola Low-Temp Ultra-Clear EVA Film is a premium-grade interlayer formulated with imported raw materials and advanced performance additives. Specially engineered for artistic and decorative laminating, it achieves excellent melt flow, superior cross-linking, and pristine optical clarity at a low temperature of just 70°C. It is the ultimate choice for encapsulating heat-sensitive inserts (such as fine silk, textiles, organic polymers, and decorative metals) without risk of damage. It also supports standard high-temperature cross-linking (125°C) to meet heavy-duty outdoor structural specifications.

• Minimum Order Quantity (MOQ): Regular stock available; no minimum order volume required.

• Clarity / Transparency Grade: Ultra-Clear / Premium Optical Grade

• Available Thicknesses: 0.38 mm / 0.76 mm

• Length: 50m - 100m

• Width: 600mm - 2600mm

• 0.38mm Standard Weight: 340 g/m²

• Melt Flow Index (MFI): 12 - 16 g/10 min

• Processing Temperature Range: 80°C (Low-Temp Mode) to 125°C (High-Temp Mode)

• UV Blocking Rate (at 380nm): ≥ 99%

• Shelf Life: 12 Months (Unopened/Original Packaging)

• Packaging Specifications: Vacuum Sealed Bag + Shockproof Bubble Cushioning + Heavy-Duty Composite Kraft Roll Box

Main Characteristics

• 70°C Low-Temperature Protection for Delicate Inserts: Achieves flawless adhesion and maximum optical clarity at low processing temperatures. It is engineered specifically to eliminate burning, shrinkage, or discoloration when laminating heat-sensitive elements like premium silk, linen, artisan paper, organic plants, or acrylic (PMMA).

• High Flow Ability — The Enemy of Wire Mesh Bubbles: Features an optimized Melt Flow Index (MFI: 12-16). The flowing resin perfectly encapsulates intricate wire meshes, metallic fabrics, and thick textiles, expelling air completely to eliminate micro-bubbles or void-induced delamination.

• Ultra-Clarity: Complies with strict Ultra-Transparency optical standards. The cured film offers a high-definition, haze-free profile that elevates the visual presentation of decorative inserts and artistic wire installations.

• Dual-Temperature Processing Versatility: Flexible dual-mode processing. At 125°C, it reaches a high cross-linking density of 85%–90% with maximum structural strength, ideal for high-performance outdoor architectural laminated glass.

• Universal Multi-Substrate Bonding: Universally bonds inorganic substrates (float glass, low-iron glass, marble, ceramics, metals) with organic polymers (PMMA/Acrylic, PC, PET, PVC) and delicate decorative inserts seamlessly.

• Elite UV Filtering & Weather Resistance: Blocks over 99% of harmful UV rays (under 380nm). It protects interior decorative inserts against fading and yellowing, maximizing the lifespan of artistic installations.

Low-Temp Ultra-Clear EVA Film for Wire & Fabric Lamination can be used for outdoor transparent laminated glass.

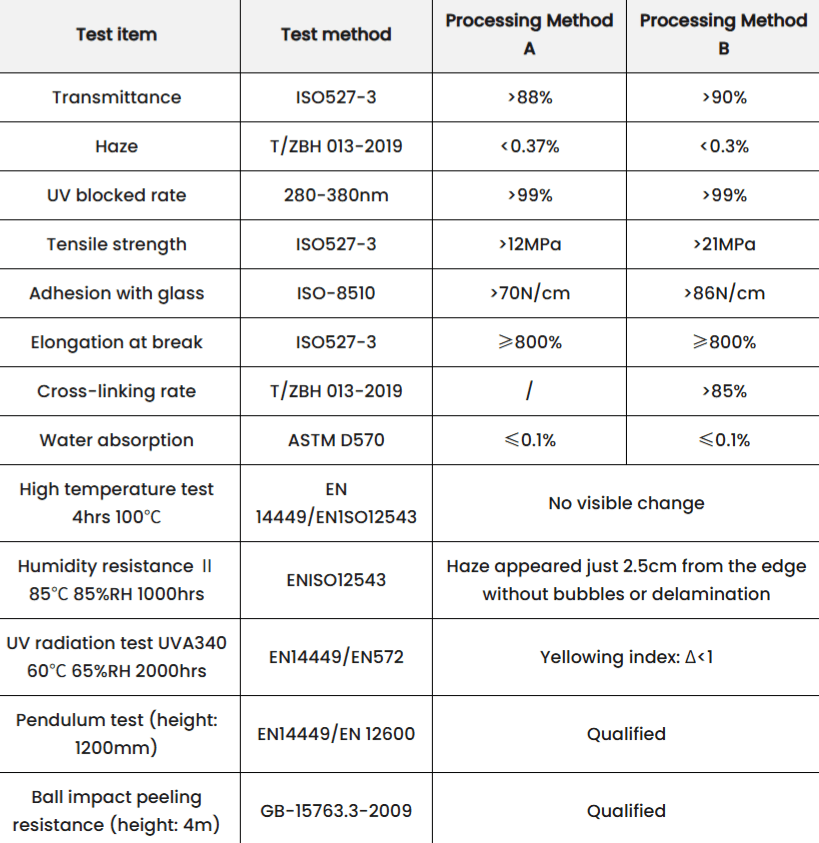

Product Performance Parameters

Note:the information and relevant data listed in this article are established in the laboratory of the company's technical department,and their contents are correct based on the truth. However, we will not make any statement or guarantee on the integrity or accuracy of the listed information and data.We provide the content of this article on the condition that it is for the user's reference only,and before using it,decide whether the information and data are suitable for their own purpose of use.In no event shall we be liable or liable for damages of any nature whatsoever arising out of the use of or reliance on the content of this document or the products mentioned herein.

Recommended Applications & Processing Modes

Processing Flexibility

This multi-purpose film is suitable for low-temperature decorative laminating (e.g., wire mesh, fabric, acrylic combinations) as well as high-temperature processing for heavy-duty outdoor structural laminated glass.

• Processing Mode A (Low-Temp Processing @ 70°C): Yields excellent bonding capability and optimal optical clarity without overheating the core materials.

• Processing Mode B (High-Temp Processing @ 125°C): Yields peak adhesion energy, maximum optical transmission, and a cross-linking density of 85%–90% for high-durability projects.
